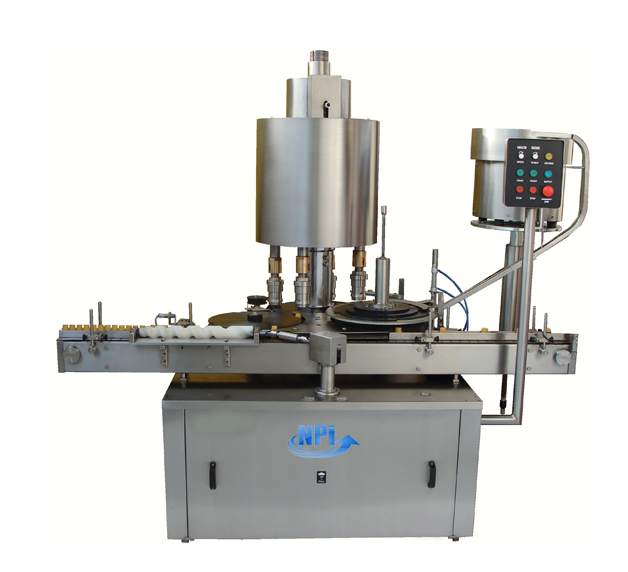

Auto Screw Cap Machine

MODEL NPRCS - 50 NPRCS – 100 NPRCS – 150 NPRCS – 170
OUTPUT / HOURS * UP TO
3000 BOTTLES
UP TO
5000 BOTTLES
UP TO
8000 BOTTLES
UP TO
10000 BOTTLES
MAIN MOTOR 1 HP, 440 VOLTS ,
50 HZ
1.5 HP, 440 VOLTS ,
50 HZ
1.5 HP , 440 VOLTS ,
50 HZ
2 HP , 440 VOLTS ,
50 HZ

ROPP CAP DIAMETER 19MM TO 54 MM WITH THE HELP OF CHANGE PART.
BOTTLE SIZE (A) 22 MM TO 100 MM DIAMETER
BOTTLE HEIGHT (B) 38MM TO 210 MM ( EXTRA HEIGHT REQUIRED WITH THE HELP OF CHANGE PART.
CONVEYOR HEIGHT 850 mm to 950 mm
Machine dimension In mm 2135 (L) X 925 (W) X 2350 (H)
NET WEIGHT IN KGS. 800 APPROX.
CHANGE PARTS (A) : STAR WHEEL BACK GUIDE , FEED WORM,
NET WEIGHT IN KGS. (B) CAP : DIE , DELIVERY CHUTE, BOWL.

SAILENT FEATURES

  • No Bottle No Cap Arrangement
  • Adjustable Height Of Conveyour Belt To Align With Other Machine Of The Line
  • Low Power Consumption And Low Noise Level
  • Quick And Easy Setting Of Infeed Value
  • Bottle Adjustable Height For Easy And Quick Setting
  • The Unit Is Made Compact & Versatile
  • S.S. Elegantly Matt Finished Body
  • Vibratory Bowl
  • S.S. slat conveyor
  • Built in front control panel
  • With A/c frequency drive
