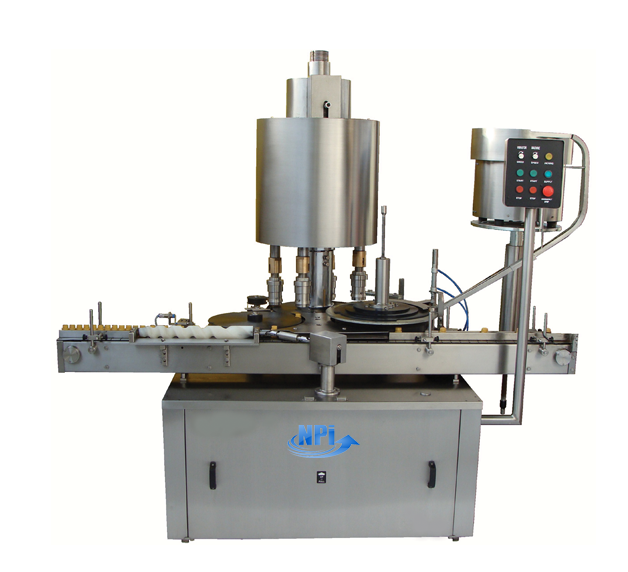

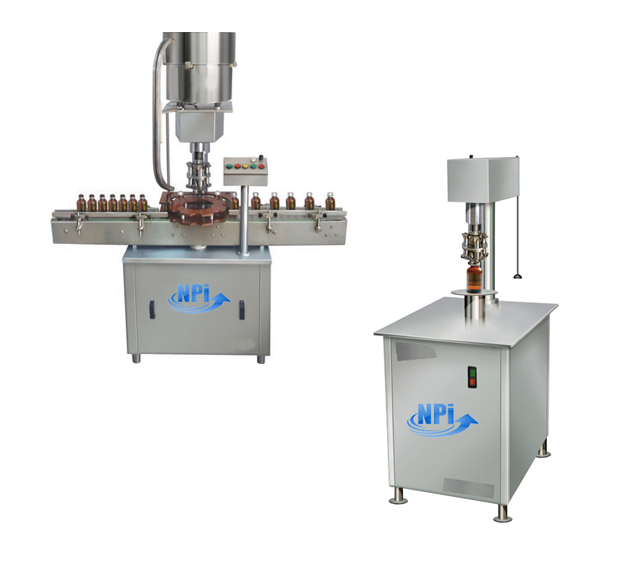

Automatic ROPP / Screw / Lug Cap & Pressing Machine

MODEL	NPRCS - 50	NPRCS – 100	NPRCS – 150	NPRCS – 170
OUTPUT / HOURS *	UP TO 3000 BOTTLES	UP TO 5000 BOTTLES	UP TO 8000 BOTTLES	UP TO 10000 BOTTLES
MAIN MOTOR	1 HP, 440 VOLTS , 50 HZ	1.5 HP, 440 VOLTS , 50 HZ	1.5 HP , 440 VOLTS , 50 HZ	2 HP , 440 VOLTS , 50 HZ

ROPP CAP DIAMETER	19MM TO 54 MM WITH THE HELP OF CHANGE PART.
BOTTLE SIZE	(A) 22 MM TO 100 MM DIAMETER
BOTTLE HEIGHT	(B) 38MM TO 210 MM ( EXTRA HEIGHT REQUIRED WITH THE HELP OF CHANGE PART.
CONVEYOR HEIGHT	850 mm to 950 mm
Machine dimension In mm	2135 (L) X 925 (W) X 2350 (H)
NET WEIGHT IN KGS.	800 APPROX.
CHANGE PARTS	(A) : STAR WHEEL BACK GUIDE , FEED WORM,
NET WEIGHT IN KGS.	(B) CAP : DIE , DELIVERY CHUTE, BOWL.
