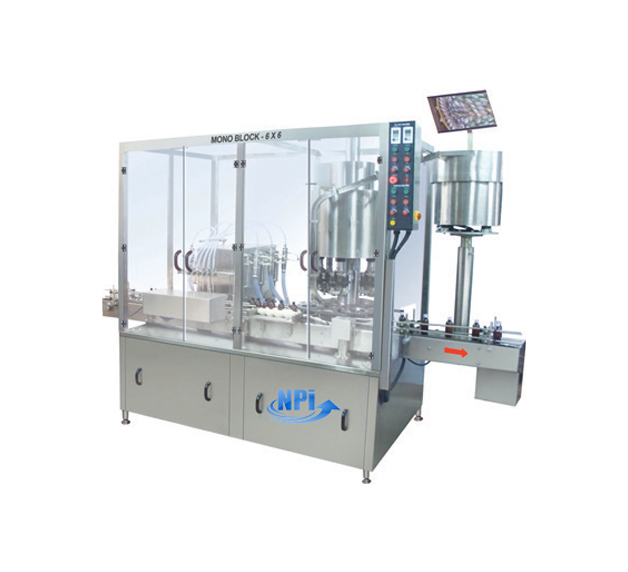

Automatic Filling cum Sealing Machine – Monoblock Type

Automatic LIQUIED Filling cum Sealing Machine – Monoblock Type

SPECIFICATION
MODEL NPAFCS-100 NPAFCS-150 NPAFCS-200
OUTPUT / HOUR* 2500 TO 5000 3000 TO 8000 4000 TO 10000
ELECTRIC MOTOR
MAIN MACHINE 3HP / 440 VOLTS / 3 PHASE / 50 (FOUR WIRE )
CONVEYOR 1 HP / 440 VOLTS / 3 PHASE / 50 (FOUR WIRE )
CONVEYOR HEIGHT 850 MM TO 950 MM ADJUSTABLE
BOTTLE SIZE Ø 30 MM TO Ø 100 MM , MAXIMUM HEIGHT 210 MM [ WITH THE HELP OF REEQUIRED CHANGE PART]
CAP SIZE 19 MM TO 54 MM ROPP / 22 MM TO 80 MM CAP FOR SCREW CAPPING
FILL SIZE 10 ML TO 1000 ML (WITH THE HELP OF REQUIRED CHANGE PART)
OVERALL DIMENSION (IN MM) 3050 (L) X 1225 (W) X 2350 (H)


SAILENT FEATURES

  • RECIPROCATING FILLING NOZZLE WITH SELF CENTERING DEVICE
  • BOTTLE STOPPER OPERATED BY PNUEMATICALLY
  • CONVEYOR S.S. CHAIN MADE OF S.S. 304
  • NO CONTAINER NO FILLING SYSTEM
  • A/C FREQUENCY DRIVE FOR VARIABLE SPEED
  • THE UNIT IS MADE BY M.S. STRUCTURE CLADED BY SS 304 AND ALL CONTACT PARTS ARE 316
  • NO BOTTLE NO CAP ARRANGEMENT
  • ADJUSTABLE HEIGHT OF CONVEYOUR BELT TO ALIGN WITH OTHER MACHINE OF THE LINE
  • LOW POWER CONSUMPTION AND LOW NOISE LEVEL
  • QUICK AND EASY SETTING OF INFEED VALVE
  • BOTTLE ADJUSTABLE HEIGHT FOR EASY AND QUICK SETTING
  • THE UNIT IS MADE COMPACT & VERSATILE
  • S.S. ELEGANTLY MATT FINISHED BODY.
  • VIBRATORY BOWL
  • S.S. slat conveyorL
  • Built in front control panel
  • With A/c frequency drive
