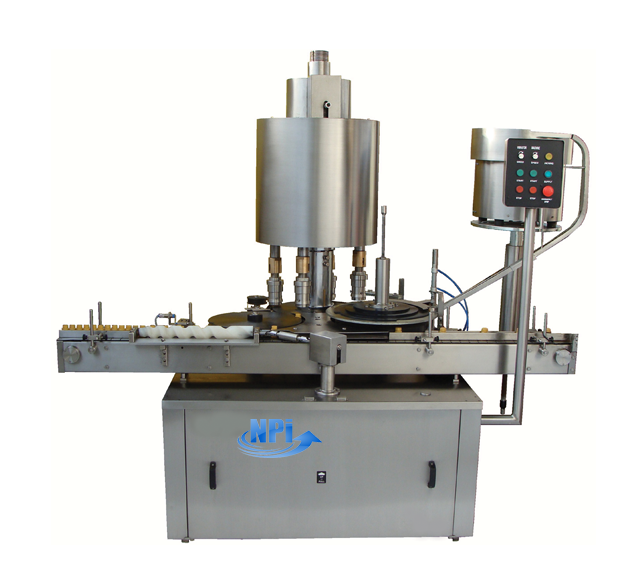

Rotary Screw Capping / Pressing Machine
| MODEL |
NPRCS - 50 |
NPRCS – 100 |
NPRCS – 150 |
NPRCS – 200 |
| OUTPUT / HOUR* |
UP TO 3000 BOTTLES |
UP TO 5000 BOTTLES |
UP TO 8000 BOTTLES |
UP TO 10000 BOTTLES |
| MAIN MOTOR |
1 HP, 440 VOLTS , 50 HZ |
1.5 HP, 440 VOLTS , 50 HZ |
1.5 HP , 440 VOLTS , 50 HZ |
2 HP , 440 VOLTS , 50 HZ |
| ROPP CAP DIAMETER |
19MM TO 54 MM WITH THE HELP OF CHANGE PART |
| BOTTLE SIZE |
(A) 22 MM TO 100 MM DIAMETER |
| BOTTLE HEIGHT |
(B) 38MM TO 210 MM ( EXTRA HEIGHT REQUIRED WITH THE HELP OF CHANGE PART |
| CONVEYOR HEIGHT |
850 mm to 950 mm |
| Machine dimension In mm |
2135 (L) X 925 (W) X 2350 (H) |
| NET WEIGHT IN KGS |
800 APPROX |
| CHANGE PARTS |
(A) : STAR WHEEL BACK GUIDE , FEED WORM, |
| REQUIRED |
(B) CAP : DIE , DELIVERY CHUTE, BOWL |
SAILENT FEATURES
- NO BOTTLE NO CAP ARRANGEMENT
- ADJUSTABLE HEIGHT OF CONVEYOUR BELT TO ALIGN WITH OTHER MACHINE OF THE LINE
- LOW POWER CONSUMPTION AND LOW NOISE LEVEL
- QUICK AND EASY SETTING OF INFEED VALVE
- BOTTLE ADJUSTABLE HEIGHT FOR EASY AND QUICK SETTING
- THE UNIT IS MADE COMPACT & VERSATILE
- S.S. ELEGANTLY MATT FINISHED BODY
- VIBRATORY BOWL
- S.S. slat conveyor
- Built in front control panel
- With A/c frequency drive
