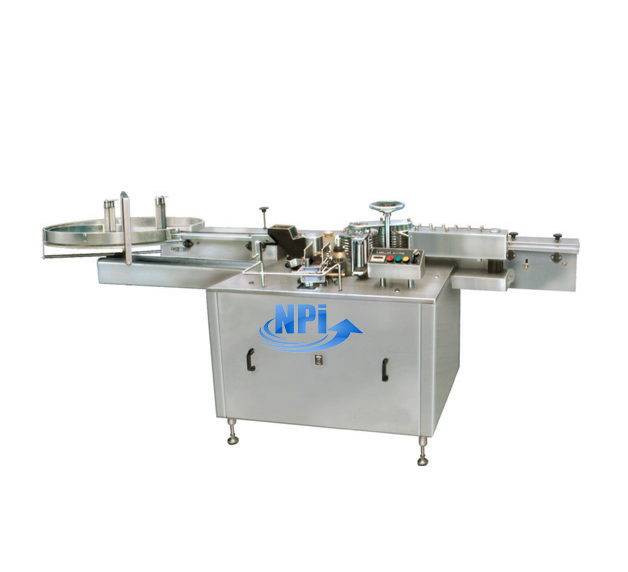

High Speed Gum labeling Machine
| MODEL |
NPHL – 150 |
| DIRECTION OF MOVEMENT |
LEFTH TO RIGHT |
| ELECTRICAL RATING |
1 HP MAIN MOTOR, 230 VOLTS, 50 HZ, (DEPENDING ON THE SIZE OF THE CONTAINER OR THE LABEL ) |
| OUTPUT / HOUR |
UP TO 8000 NOS. OF ROUND BOTTLES [DEPENDING ON LABEL SIZE]
0.5 HP VACCUM PUMP MOTOR , 415 VOLTS, 50 HZ |
| STRUCTURE |
MAKE BY M.S. AND CLADED BY WHOLE MACHINE S.S. 304 |
| LABEL |
LENGTH 20 MM TO 155 MM & WIDTH 16 MM TO 150 MM [ WITH THE HELP OF REQUIRED CHANGE PART ] |
| OVER ALL DIMENSION |
3000 mm (L)*1065mm(W)*1045mm(H)+30 mm. |
SAILENT FEATURES
- MINIMUM CHANGE OVER TIME ONE SIZE TO ANOTHER FOR BOTTLE AND LABELS.
- SPECIALISED BEARING ENSURE SMOOTH AND TROUBLE FREE ROTATION
- NO BOTTLE NO LABEL SYSTEM AVOID WASTAGE OF LABEL
- HGHLY EFFICIENT VACCUM PUMP DEVELOPS VACUUM TO HOLD LABEL FIRMLY ON CYLINDER
- ADJUSTABLE CONVEYOR HEIGHT 850 TO 950 MM
